Name：armored thermocouple
Model：WRNK-131
Quoted price：面议
Feature：WRNK-131 armored thermocouple
armored thermocoupleDetails：

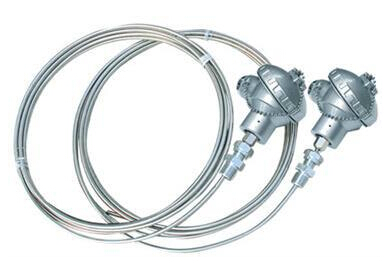

WRNK-131 armored thermocouple
Armored thermocouple is good at bending, anti-high temperature and fast heating response. As the sensor of the temperature measurement, it is usually used with the displays, recorders and adjustable meters completely. At the same time, it also can be the heat responsive element of the assembly-type thermocouple to measure the temperature of the liquid, vapor, gas and the surface of solid from 0℃～800℃ directly.
Measuring range and accuracy
| category | code | graduation | pipe out diameter mm | temperature℃ | Max temperature℃ | Allow error△t | |
| range℃ | Allow error | ||||||
| Nickel chromium triangle－copper nickel | WREK | E | ≥ø3 | 600 | 700 | 0～700 | ±2.5℃or ±0.75%t |
| Nickel chromium triangel－nisiloy | WRNK | K | ≥ø3 | 800 | 900 | 0～900 | ±2.5℃ or ±0.75%t |
| copper－copper nickel | WRCK | T | ≥ø3 | 350 | 400 | ＜-200 | |
|
-40
350
|
±0.75%t | ||||||
Thermal responsive time
| Thermal responsive timet0.5S | Connection shell type | Insulate type |
| Tube diameter（min） | ||
| 2.0 | 0.4 | 0.5 |
| 3.0 | 0.6 | 1.2 |
| 4.0 | 0.8 | 2.5 |
| 5.0 | 1.2 | 4.0 |
| 6.0 | 2.0 | 6.0 |
| 8.0 | 4.0 | 8.0 |
Insulation resistance
| Tube diameter(mm) | Tried voltage V-D.C | Insulation resistance(MΩ.m) |
| 0.5～1.5 | 50±5 | ≥1000 |
| ＞1.5 | 500±50 | ≥1000 |
