Name:temperature transmitter

Model:SBWR-4270/240d

Quoted price:面议

Feature:SBWR-4270/240d temperature transmitter

temperature transmitterDetails:

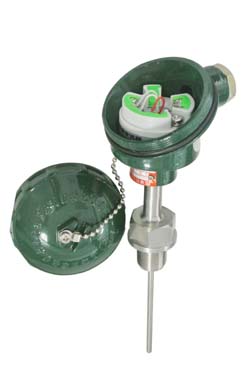

SBWR-4270/240d temperature transmitter with thermocouple or thermal resistor is a temperature transmission unit of DDZ-S series instrument. It combines thermocouple or thermal resistor with transmitter to measure temperature of liquid, vapor and gas media within -200~1600℃. It will convert thermocouple or thermal resistor signal into 4~20mA output signal and send to display, recording instrument or computer. As a new type of temperature transmitter, it is widely used in metallurgy, petroleum, chemical, electric power, light industry, textile, food, defense and scientific research departments.

Platinum RTD
Accuracy grade:A or B grade
Indexing number:Pt100      resistance at 0℃:R0=100±0.06Ω(A grade)
R0=100±0.12Ω(B grade)
Allowable bias Δt(℃):
Pt100±(0.15+0.002∣t∣)(A grade)
Pt100±(0.30+0.005∣t∣)(B grade)
Cu50±0.1%R0
Cu100±0.1%R0
Thermal response time:Т0.5<90S
Transmitter Parts
input:thermal resistance:Pt100、Cu50、Cu100
thermocouple:K.E.S.B.T.N.
output: 4~20mA DC signal
basic error: Δ=Δ1+Δ2
Δ1 allowable output error of thermocouple or thermal resistor.
Δ2 basic output error of transmitter Δ2=±0.5%FS
Transmission type:Two-wire
Power voltage: Min. 12V,Max. 35V,rated voltage 24V。
Load resistance: RL(max)=50×(Vmin-12)( 24V, load resistance 0~600Ω,rated resistance 250Ω)
Working condition:
a. ambient temperature:-25℃~80℃(<70℃ in dangerous place)。
b. RH:5%~95%。
c. mechanical frequency :f≤55Hz,amplitude <0.15mm
d. without corrosive gas in ambient
e. affect of ambient temperature:≤0.05%/1℃
□ Model

□

Output  properties

sensor

Circuit  Type

Device Type

installation

DDZ-S series instrument

Transmission

unit

temperature

R thermocouple



Z Thermal resistor



2) output and hydraulic temperature is linear



4) output and input signal for hydraulic linear



0) Universal Thermocouple
1) E Nickel-chromium - copper-nickel
2) K Ni-Cr - Ni-Si
3)

 S Platinum Rhodium 10 - Platinum
4)

B Platinum Rhodium 30 - Platinum-rhodium 6
5) TCopper - Copper Nickel
8)NNi-Cr-Si - Ni-Si thermal resistor

1) Cu50 Copper resistance
2) Cu100 Copper resistance
4)Pt100  RTD

5)isolated

6)not isolated





0) normal type

 1)

 intelligent type

No) conventional type

T) special use

G) hanging wall type

D) rail type
