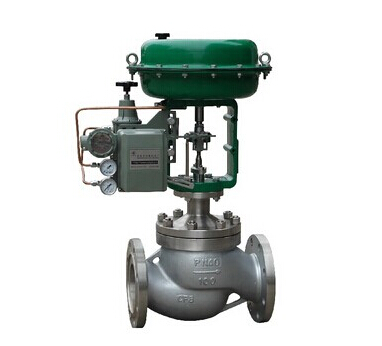

Name：pneumatic diaphragm single-seat control valve
Model：97-21104
Quoted price：面议
Feature：97-21104 pneumatic diaphragm single-seat control valve
pneumatic diaphragm single-seat control valveDetails：
97-21104 pneumatic diaphragm single-seat control valve
97-21104 pneumatic diaphragm single-seat control valve is a company I plant the introduction of US manufacturing technology to produce Masoneilan 21000 series of single -seat control valve with self-developed a new generation of actuators - pneumatic membrane composed of multi-spring actuator. It has the use of a wide surface actuators compact , lightweight characteristics , but also has 21 000 single-seat valve , good stability, small amount of leakage characteristics. Petroleum , chemical, power plants , light industry, textile , metallurgy and other industrial process control used in ideal one valve pneumatic control products.
Body SCPH2 (WCB) SCPH21 (WC6)
SCS14A (CF8M) ZG1Cr18Ni9Ti
Trim SUS304, SUS316, SUS403,0Cr18Ni12Mo2Ti, 1Cr13
Model represents 9 □ 2 1 □ □ □ □
|
9 □ |
2 1 |
□ |
□ |
□ |
□ |
|
Actuator |
Valve body |
Valve spool |
Flow type |
Valve trim |
Valve bonnet |
|
7. air closed 8. air open |
21 |
0．No specified 1．Profiled outline |
0．No specified 1．Straight line 2. Equal percentage |
0．No specified 4．Quick change 5．Thread connetion 6．Soft seal |
Without marking is standard type EB：extension type AB：heat sink type |
