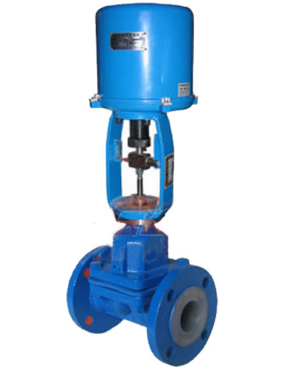

Name：electric diaphragm adjusting valve
Model：ZDZT
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
electric diaphragm adjusting valveDetails：
|
Nominal diameter mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
|
|
Allowed pressure difference (MPa) |
1.0 |
0.89 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
0.6 |
0.38 |
0.15 |
0.057 |
|||
|
Rated flow coefficient Kv |
8 |
12 |
16 |
38 |
60 |
68 |
90 |
150 |
300 |
500 |
600 |
1200 |
2000 |
|
|
Nominal pressure (MPa) |
1.0 |
|||||||||||||
|
Travel (mm) |
10 |
16 |
25 |
40 |
60 |
|||||||||
|
Flow characteristics |
Similar quick（regulation type） |
|||||||||||||
|
Flange size |
Cast iron flange according to JB78-59，cast steel flange according to JB79-59 |
|||||||||||||
|
Model of actuator |
PSL |
PSL-201 |
PSL-202 |
PSL-204 |
PSL-208 |
PSL-312 |
||||||||
|
361L |
361LSA-08 |
361LSA-20 |
361LSB-30 |
361LSB-50 |
361LSC-65 |
|||||||||
|
Explosion-proof |
361LXA-20 |
361LXB-30 |
361LXB-50 |
|
||||||||||
,
