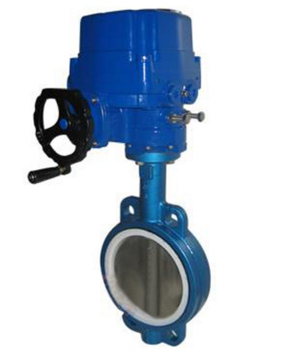

Name：electronic electric adjusting butterfly valve
Model：ZDLW
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
electronic electric adjusting butterfly valveDetails：
|
Type |
Linear travel |
Angle travel |
||
|
Normal temperature |
Medium temperature |
Medium temperature |
Normal temperature |
|
|
Model |
ZDR/LW-6B/K |
ZDR/LW-6B/KG |
ZDR/LW-6B/KG |
ZDR/LW-6B/K |
|
Specifications |
DN600-1000 |
DN50-5000 |
||
Main technology parameters and performance index
1、 main technology parameters of butterfly valve
|
Nominal diameter mm |
50 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
||||||
|
Nominal pressure MPa |
0.6 |
||||||||||||||
|
Media temperature ℃ |
Normal temperature：-20~200（cast iron）；-40~250（cast steel）；medium temperature -40~450（cast stainless steel） |
||||||||||||||
|
Angle range ° |
0-70 |
||||||||||||||
|
Flow characteristics |
Approximate percentage |
||||||||||||||
|
Environment temperature |
No space heaters：-10~60；With space heaters：-35~60
|
||||||||||||||
|
Connection flange |
According to JB78-59 wafer flange connected |
||||||||||||||
|
Material of valve body |
HT200；35；ZG230-450；1Cr18Ni9；ZG1Cr18Ni9Ti |
||||||||||||||
|
Material of valve plate |
HT200；35；ZG230-450；1Cr18Ni9；ZG1Cr18Ni9Ti |
||||||||||||||
|
Nominal diameter mm |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
|||||||
|
Nominal pressure MPa |
0.6 |
||||||||||||||
|
Media temperature ℃ |
Normal temperature：-20~200（cast iron）；-40~250（cast steel）；medium temperature -40~450（medium temperature） |
||||||||||||||
|
Angle range ° |
0-70 |
||||||||||||||
|
Flow characteristics |
Approximate percentage |
||||||||||||||
|
Environment temperature |
No space heaters：-10~60；With space heaters：-35~60
|
||||||||||||||
|
Connection flange |
According to JB78-59 wafer flange connected |
||||||||||||||
|
Material of valve body |
HT200；35；ZG230-450；1Cr18Ni9；ZG1Cr18Ni9Ti |
||||||||||||||
|
Material of valve plate |
HT200；35；ZG230-450；1Cr18Ni9；ZG1Cr18Ni9Ti |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
