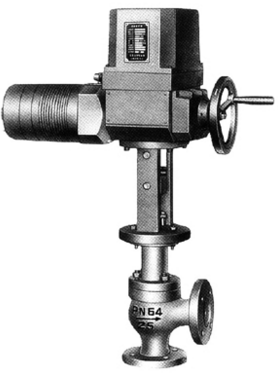

Name：electric angle adjusting valve
Model：ZAZSC
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
electric angle adjusting valveDetails：
|
Nominal diameter DN（mm） |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
|
Rated flow coefficient KV |
1.6 |
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
|
|
|
|
25 4.0 |
||||||||||||||
|
6.3 |
||||||||||||||
|
Nominal pressure PN（MPａ） |
|
6.4 |
||||||||||||
|
Travel （mm） |
10 |
16 |
25 |
40 |
60 |
100 |
||||||||
|
Electric actuator（DKZ）（ZKZ） |
Model |
1100 |
2200 |
3300 |
4400 |
5500 |
5600 |
|||||||
|
Torque（N） |
400 |
1000 |
2500 |
6400 |
16000 |
16000 |
||||||||
|
Time of full travel （S） |
6.5 |
10 |
15.5 |
25 |
37.5 |
62.5 |
||||||||
|
Model |
ZAZ 310c |
310C |
410C |
510C |
||||||||||
|
Torque |
250 4000 |
4000 |
6400 |
16000 |
||||||||||
|
Time of full travel（S） |
20 8 |
12.5 |
20 |
32 |
37 |
62 |
||||||||
|
Temperature range of media |
PN6.4 |
－40～＋250℃；－40～＋450℃（band radiator） |
－40～＋250℃ |
|||||||||||
|
Rated flow characteristics |
Straight line；equal percentage |
|||||||||||||
|
Explosion-proof |
dⅡBT3** |
|||||||||||||
,
