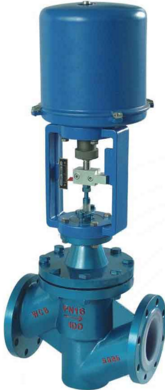

Name：electric fluorine plastic single-seat control valve
Model：ZAZPF
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
electric fluorine plastic single-seat control valveDetails：
|
Nominal diameter DN（mm） |
G3/4” |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150
|
|||||||||
|
Diameter of valve seat DN（mm） |
3 |
4 |
5 |
6 |
7 |
8 |
10 |
12 |
15 |
20 |
26 |
32 |
40 |
50 |
65 |
80 |
100 |
150
|
|
|
Rated flow coefficient KV |
0.08 |
0.12 |
0.20 |
0.32 |
0.50 |
0.80 |
1.2 |
2 |
3.2 |
5 |
8 |
12 |
20 |
32 |
50 |
70 |
100 |
240
|
|
|
Flow characteristics |
Straight line |
Straight line、Equal percentage
|
|||||||||||||||||
|
Nominal pressure PN（MPａ） |
1.0 1.6
|
||||||||||||||||||
|
Actuator |
Ⅱtype |
ZAZ－25 |
ZAZ－25 |
DKZ－310 |
DKZ－310 |
DKZ－410 |
DKZ－510
|
||||||||||||
|
Ⅲtype |
ZAZ－2100 |
ZAZ－2100 |
ZKZ－2200 |
ZKZ－3300 |
ZKZ－4400 |
ZKZ－4500
|
|||||||||||||
|
Process travel mm |
10 |
10 |
16 |
25 |
40 |
60
|
|||||||||||||
|
Input signal |
Ⅱtype 0～10mADC Ⅲtype 4～20mADC
|
||||||||||||||||||
|
Action mode |
Power on（K general）；power off（B） |
||||||||||||||||||
|
Working temperature |
－30～200℃ |
||||||||||||||||||
|
Power supply |
220V\50～60Hz |
||||||||||||||||||
|
Explosion-proof |
General 、explosion-proof dⅡBT3 |
||||||||||||||||||
|
Rated adjustable ration R |
30：1 |
||||||||||||||||||
,
