Name：pneumatic sanitary adjusting valve
Model：ZTRS(ZRS-10K)
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
pneumatic sanitary adjusting valveDetails：

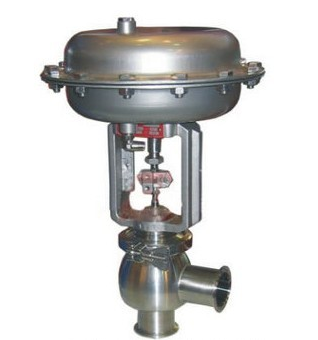

ZTRS(ZRS-10K) pneumatic sanitary adjusting valve used for the physical regulation of pressure, temperature, flow, like food, pharmacy, cosmetics, clean steam, alcohol, beverage, chemical and biological industries. Impact structure, convenient assembly, high regulation precision, especially with little loss of pressure drop, large flow, wide adjustable range, high flow precision, completely according to IEC534-1-1978 standard, leakage of valve according to ANSIB16.104 standard, adjusting valve equipped with different multi-spring actuator, large output force
Characteristics and features
Angle design, ensure self-discharging, standard e-polishing, smooth surface keep the clean, reduce the process downtime
Valve body type: angle-type casting ball-type(standard) three-way, linear, multi-way
Nominal diameter: Dn15、25、40、50、65、80、100mm
Nominal pressure: PN1.0MPa
Connection type: clamp, threaded, flanged
Materials: stainless steel 304SS、316SS、316LSS
Filler: EPDM rubber, PTFE
