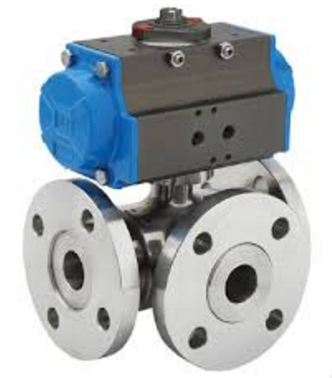

Name：small pneumatic three-way ball valve
Model：ZSQRJ
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
small pneumatic three-way ball valveDetails：
ZSQRJ small pneumatic three-way ball valve made up of ZGH pneumatic actuator and three-way ball valve, use special three-way four-phase sealing structure, stable sealing, reliable performance. Three-way ball valve spool: T-type and L-type. Long using life, large flow capacity, small resistance. T-type ball spool for shunt, L-type hole channel for distribution, action mode: single action and double action
|
Nominal diameter |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
|
Type |
|
||||||||||
|
Nominal pressure |
PN1.6、6.4mpa |
||||||||||
|
Connection type |
Flange connected，according to JB79-59 standard |
||||||||||
|
Material of valve body |
Cast steel, cast stainless steel |
||||||||||
|
Suitable |
900 |
||||||||||
|
Valve spool type |
Normal temperature: -40℃-180℃; high temperature-40℃-450℃ |
||||||||||
|
Angle of valve spool |
DKJ-II, III-type PSAUTCMATICN CMBH, LNAR-KOSO, unic-Z electric actuator |
||||||||||
|
Actuator |
0-1MA 4-20MA 15V DC |
||||||||||
|
Pressure of supply air |
≤±2.5% of full travel |
||||||||||
