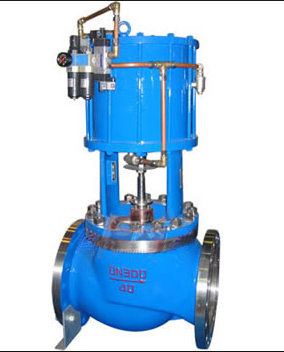

Name：pneumatic piston cut-off valve
Model：ZSPC、ZSNC
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
pneumatic piston cut-off valveDetails：
ZSPC、ZSNC pneumatic piston cut-off valve, made up of pneumatic piston actuator and cut-off body.. sealing surface of valve spool: hard sealing and soft sealing; structure of valve spool: single-guide flat and single-guide balanced. Impact structure, reliable action, strict cut-off, quick open and close. Used in automatic control system with no grainy, no impurity gas, liquid medium
|
Nominal diameter mm |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
||
|
Diameter of valve seat mm |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
Contact us |
|
|
Rated flow coefficient Kv |
6.5 |
10 |
15 |
25 |
40 |
65 |
100 |
150 |
260 |
350 |
540 |
||
|
Nominal pressure MPa |
1.6 ； 4.0 ； 6.4 |
||||||||||||
|
Travel mm |
10 |
16 |
25 |
30 |
40 |
60 |
|
|
|||||
|
Flow characteristics |
Quick open |
||||||||||||
|
Media temperature ℃ |
Soft sealing ：-40～150（normal temperature ） ； hard sealing：-40～200（normal temperature）； -40～450（medium temperature） |
||||||||||||
|
Flange size、type |
PN16 according to JB79-59； PN4.0、64 according to JB/T79.2-94 concave |
||||||||||||
|
Material of valve body |
ZG230-450 ； ZG1Cr18Ni9Ti；ZGOCr18Ni12Mo2Ti |
||||||||||||
|
Material of valve seat、valve spool |
1Cr18Ni9 ； 0Cr18Ni12Mo2Ti |
||||||||||||
|
Upper cover |
General （normal temperature） ； heat sink（medium temperature ） |
||||||||||||
|
Components |
Handwheel body、air filter regulator 、solenoid valve、feedback device of signal |
||||||||||||
,
