Name：pneumatic diaphragm sleeve control valve
Model：ZMAM/ZMBM
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD

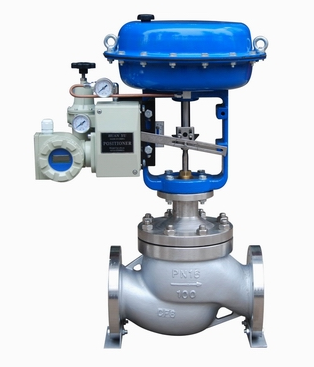

pneumatic diaphragm sleeve control valveDetails：
|
Nominal diameter mm |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
|||||||
|
Diameter of valve seat mm |
10 |
12 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
Contact us |
|||
|
Rated flow coefficient Kv |
Straight line |
1.8 |
2.8 |
4.4 |
6.9 |
11 |
17.6 |
27.5 |
44 |
69 |
110 |
176 |
275 |
440 |
690 |
1000 |
1600 |
|||
|
Equal percentage |
1.6 |
2.5 |
4 |
6.3 |
10 |
16 |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
900 |
1440 |
||||
|
Normal pressure MPa |
0.6 1.6 4.0 6.4 |
|||||||||||||||||||
|
Travel mm |
10 |
16 |
25 |
40 |
60 |
100 |
|
|
||||||||||||
|
Flow characteristics |
Straight line、equal percentage、quick open |
|||||||||||||||||||
|
Media temperature℃ |
-15～200(normal temperature)、-40～+250、-40～+450(medium temperature)、-100～+200(low temperature) |
|||||||||||||||||||
|
Flange size |
Cast iron flange size JB78、Cast steel flange size JB79 |
|||||||||||||||||||
|
Flange type |
According to JB78-59、JB79-59 standard，according to JB/79.1-94、JB/79.2-94、ANSI、JIS、DIN standard |
|||||||||||||||||||
|
Material of valve body |
PN |
0.6,1.6 |
WCB(ZG230-450) CF3CF8 CF8M |
|||||||||||||||||
|
4.0,6.4 |
WCB(ZG230-450)、ZG1Cr18Ni9Ti、ZG0Cr18Ni12Mo2Ti CF8 CF8M |
|||||||||||||||||||
|
Valve body |
Linear single-seat casting ball valve |
|||||||||||||||||||
|
Material of valve spool |
1Cr18Ni9、0Cr18Ni12Mo2Ti CF8 CF8M |
|||||||||||||||||||
|
Upper cover |
General (normal temperature )、heat sink(medium temperature)、low temperature |
|||||||||||||||||||
|
Components |
Positioner hand wheel electric/gas convertor air filter regulator |
|||||||||||||||||||
|
Adjustable ratio R |
30:1 |
|||||||||||||||||||
|
Connector of air supply |
M16×1.5 |
|||||||||||||||||||
