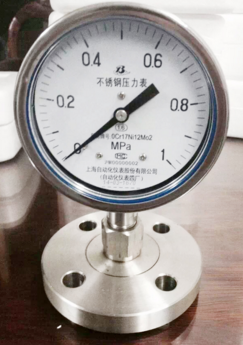

Name：diaphragm pressure gauge

Model：YPF-100B

Quoted price：面议

Feature：YPF-100B diaphragm pressure gauge

diaphragm pressure gaugeDetails：

YPF-100B diaphragm pressure gauge

□ Introduction

Diaphragm pressure gauge for measuring a certain corrosive, pressure or negative pressure of non-coagulating or non-crystalline variety of fluid media.

Corrosion resistance depending on the membrane material.

□ principle structure

Instrument by the measurement system (including flange joints, corrugated diaphragm), the transmission indication institutions (including connecting rod, gear transmission, pointer and dial) and housing (including case and bezel), etc. Instrument case is splash-proof structure, with good tightness, it could protect its internal organs from contamination ingress.

Action principle instrument is based on the elastic element (diaphragm measuring system) deformation. Measured medium under pressure, forcing the diaphragm to produce the corresponding elastic deformation - displacement, through the link set by the drive transmission mechanism and to zoom in, will be measured by the value of the fixed gear pointer on the dial It is indicated.

□ The main technical indicators

Accuracy: 2.5

Ambient temperature: -40 ~ + 70 ℃; relative humidity less than 90%.

Temperature: Temperature deviation from 20 ± 5 ℃, its temperature is an additional error of less than 0.04% / ℃.

Working position: vertical installation.

Housing protection class: Conforms to IP64.

□ Model designation

Y	P	F	－	Specification			Concent
				100			Ф100mm
				150			Ф150mm
				Surface outside diameter	－
						A	Diaphragm pressure gauge M20 × 1.5 external thread connection
						B	Stainless steel diaphragm pressure gauge M20 × 1.5 external thread connection
						B－F	Flange stainless steel diaphragm pressure gauge 25-4.0HG flange
						Type
Y	P	F	－	□	－	□

Scale range, dimensions and weight

Model	Scale range	Pressure part D1	DN D	Weight Kg
YPF-100A	0～0.06、0～0.1、0～0.16、0～0.25、0～0.4 0～0.6、0～1、0～1.6、0～2.5、-0.1～0 -0.1～0.06、-0.1～0.15、-0.1～0.3、-0.1～0.5 -0.1～0.9、-0.1～1.5、-0.1～2.4Mpa	Ф85	Ф100	1.6
YPF-100B YPF-100B-F
		Ф115
YPF-150A		Ф85	Ф150	1.8
YPF-150B YPF-150B-F
