Name：assembly-type thermocouple with stainless steel junction box
Model：WRR-120B
Quoted price：面议
Feature：WRR-120B assembly-type thermocouple with stainless steel junction box
assembly-type thermocouple with stainless steel junction boxDetails：

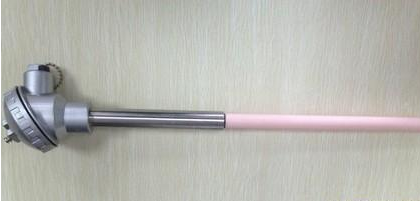

WRR-120B assembly-type thermocouple with stainless steel junction box
As the sensor of the temperature measurement, assembly-type stainless steel junction box thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1800℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all not only in line of IEC international standard graduation but also JB/T9238-1999 standard.
|
Thermocouple category
|
Model
|
Graduation
|
Temperature measuring range℃ |
Specification
|
Thermal response time τ0.5s | |
|
Diameter
mm
|
Protection tube material | |||||
|
Single platinum rhodium30-platinum rhodium 6
|
WRR-120B |
B
|
0-1600
|
Φ16 | Corundum | ＜150 |
| WRR-121B | Φ25 | ＜360 | ||||
|
Double platinum rhodium30-platinum rhodium6
|
WRR2-120B | Φ16 | ＜150 | |||
| WRR2-121B | Φ25 | ＜360 | ||||
|
Single platinum rhodium10-platinum
|
WRP-120B |
S
|
0-1300
|
Φ16 | High Aluminum | ＜150 |
| WRP-121B | Φ25 | ＜360 | ||||
|
Double platinum rhodium10-platinum
|
WRP2-120B | Φ16 | ＜150 | |||
| WRP2-121B | Φ25 | ＜360 | ||||
|
Single nickel chrome-nickel silicon
|
WRN-122B |
K
|
0-1100 | Φ16 | High Aluminum |
＜240
|
| WRN-123B | 0-1200 | Φ20 | ||||
|
Double nickel chrome-nickel silicon
|
WRN2-123B | 0-1100 | ||||
|
Single platinum rhodium30-platinum rhodium6
|
WRR-130B |
B
|
0-1600
|
Φ16 | Corundum |
＜150
＜360
＜150
＜360
|
| WRR-131B | Φ25 | |||||
|
Double platinum rhodium30-platinum rhodium6
|
WRR2-130B | Φ16 | ||||
| WRR2-131B | Φ25 | |||||
|
Single platinum rhodium10-platinum
|
WRP-130B |
S
|
0-1300
|
Φ16 | High Aluminum |
＜150
＜360
＜150
＜360
|
| WRP-131B | Φ25 | |||||
|
Double platinum rhodium 10-platinum
|
WRP2-130B | Φ16 | ||||
| WRP2-131B | Φ25 | |||||
|
Single nickel chrome-nickel silicon
|
WRN-133B |
K
|
0-1200 |
Φ20
|
High Aluminum | ＜240 |
|
Double nickel chrome-nickel silicon
|
WRN2-133B | 0-1100 | ||||
Notes：1) Structure Characteristics：Material of the non-plug part is 1 cr18Ni9Ti
2) Diameter is 25mm and double porcelain casing.
Protection tube diameter and length specification table
| φ16(SWNT) |
φ20
|
φ25(Double layer tube) | |||
| Overall length L |
Plug Depth
ι
|
Overall length
L
|
Plug Depth
ι
|
Overall length
Plug Depth
|
Plug Depth
ι
|
|
300
|
150
|
400 |
250
|
550 |
400
|
| 350 |
200
|
450 |
300
|
650 |
500
|
| 400 |
250
|
550 |
400
|
900 |
750
|
| 450 |
300
|
650 |
500
|
1150 |
1000
|
| 550 |
400
|
900 |
750
|
1650 |
1500
|
| 650 |
500
|
1150 |
1000
|
2150 |
2000
|
| 900 |
750
|
1650 |
1500
|
|
|
| 1150 |
1000
|
2150 |
2000
|
|
|
