Name：assembly-type thermocouple
Model：WRE-625
Quoted price：面议
Feature：WRE-625 assembly-type thermocouple
assembly-type thermocoupleDetails：

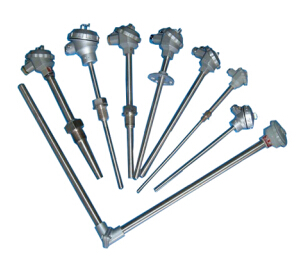

WRE-625 assembly-type thermocouple
As the sensor of the temperature measurement, assembly-type thermocouple is used with displays, recorders and electrical adjuster completely. It can measure the temperature of liquid, vapor, gas and the surface of solid from 0℃ to 1800℃ directly. According to national regulation, we have manufactured copper- copper nickel, iron-copper nickel etc. type of thermocouple since 1987. They are all in line of IEC international standard graduation.
|
category
|
mode
|
graduation
|
range
|
Allowable error(△t℃)
|
| Platinum rhodium 30－Platinum rhodium 6 | WRR | B | 0-1800 | ±1.5℃ or ±0.0025∣t∣ |
| Platinum rhodium10－platinum | WRP | S | 0-1600 | ±1.5℃ or ±0.0025∣t∣ |
| Nickel chromium triangle－nisiloy | WRN | K | 0-1300 | ±2.5℃ or ±0.0075∣t∣ |
| Nickel chromium triangle－copper nickel | RE | E | 0-800 | ±2.5℃ or ±0.0075∣t∣ |
Models
WR□－□□□
| W | Temperature meter |
| R | Thermocouple |
| □thermocouple material | R）platinum rhodium30－platinum rhodium 6 |
| P）platinum rhodium 10－platinum | |
| N）nickel chromium triangle－nisiloy | |
| E）nickel chromium triangle－copper nickel | |
| □ install and fixed type | 1）non-fixed molded type |
| 2）fixed screw type | |
| 3）movable flange | |
| 4）fixed flange type | |
| 5）movable flange square type | |
| 6）fixed screw protect tube type | |
| □ junction box type | 2）splash proof type |
| 3）waterproof type | |
| 4）explosion suppression type | |
| □ design series number | 0）ø16mm protecting tube |
| 1）ø25mm protecting tube（double tubes） | |
| 2）ø16mm high aluminum tube（single tube） | |
| 3）ø20mm high aluminum tube |
Upper and lower limits of thermocouple and insulating resistance：
|
Upper temperature limit(tm℃)
|
Test temperature(T℃ )
|
Resistance(MΩ)
|
| 100≤tm＜300 | t=tm | 10 |
| 300≤tm＜500 | t=tm | 2 |
| 500≤tm＜850 | t=tm | 0.5 |
| 850≤tm＜1000 | t=tm | 0.08 |
| 1000≤tm＜1300 | t=tm | 0.02 |
| tm＞1300 | t=1300 |
0.02 |
