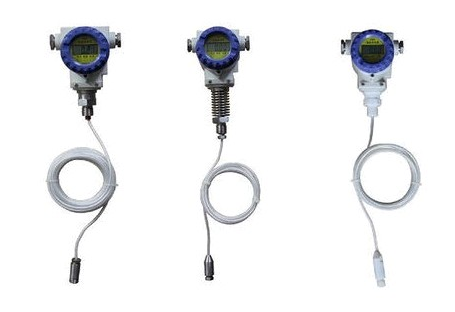

Name：capacitance level meter
Model：UYZ-50 series
Quoted price：面议
Feature：SHANGHAI AUTOMATION INSTRUMENTATION CO., LTD
capacitance level meterDetails：
UYZ-50 series capacitance level meter is used to measure and indicate the level of tank, container conductive, non-conductive medium and powder. It outputs 0～10mA and can connect with current meter or DDZ－Ⅱ display instrument. if the circuit need to contact ground, you need equip isolator to match with the computer input terminal.
accuracy：non-explosion-proof ±1％
explosion-proof type ±1.5％
measure range：0.5，1.0，1.5，2.0，2.5，3.0m（UYZ－561B measure range 3.0，4.0，6.0，10m）。
load resistance：1.5kΩ
output signal：0～10mADC
power supply：220VAC（+10%/-15%）50Hz
media pressure：2.5Mpa
working condition：
sensor temperature: －40～＋85℃，RH: 10～95%
display instrument temperature:0～45℃，RH: 10～90%
alarm setting error：±2.5％
alarm setting range：0～100%
alarm contact capacity：220VAC 3A
Explosion-proof barrier model：DFA－3100 zener safety barrier
Explosion-proof mark：iaⅡCT6
UYZ－5 □ □ □ □
|
5series code |
□electrode type |
□ media temperature range |
□ migration |
□explosion-proof level |
|
1）insulation type 2）Bare pole coaxial type 3）Bare pole type 4）coaxial insulating type 5）separate type 6） Insulating Rope type |
1）standard：－40～＋85℃ 2）high-temperature：85～200℃ 3）low-temperature：Ⅰ－100～－40℃ 4）low-temperature：Ⅱ－156～－100℃ 5）low-temperature：Ⅲ－200～－156℃ |
A）micro-capacitance 6～50pF B)medium capacitance 30～1300pF |
|
